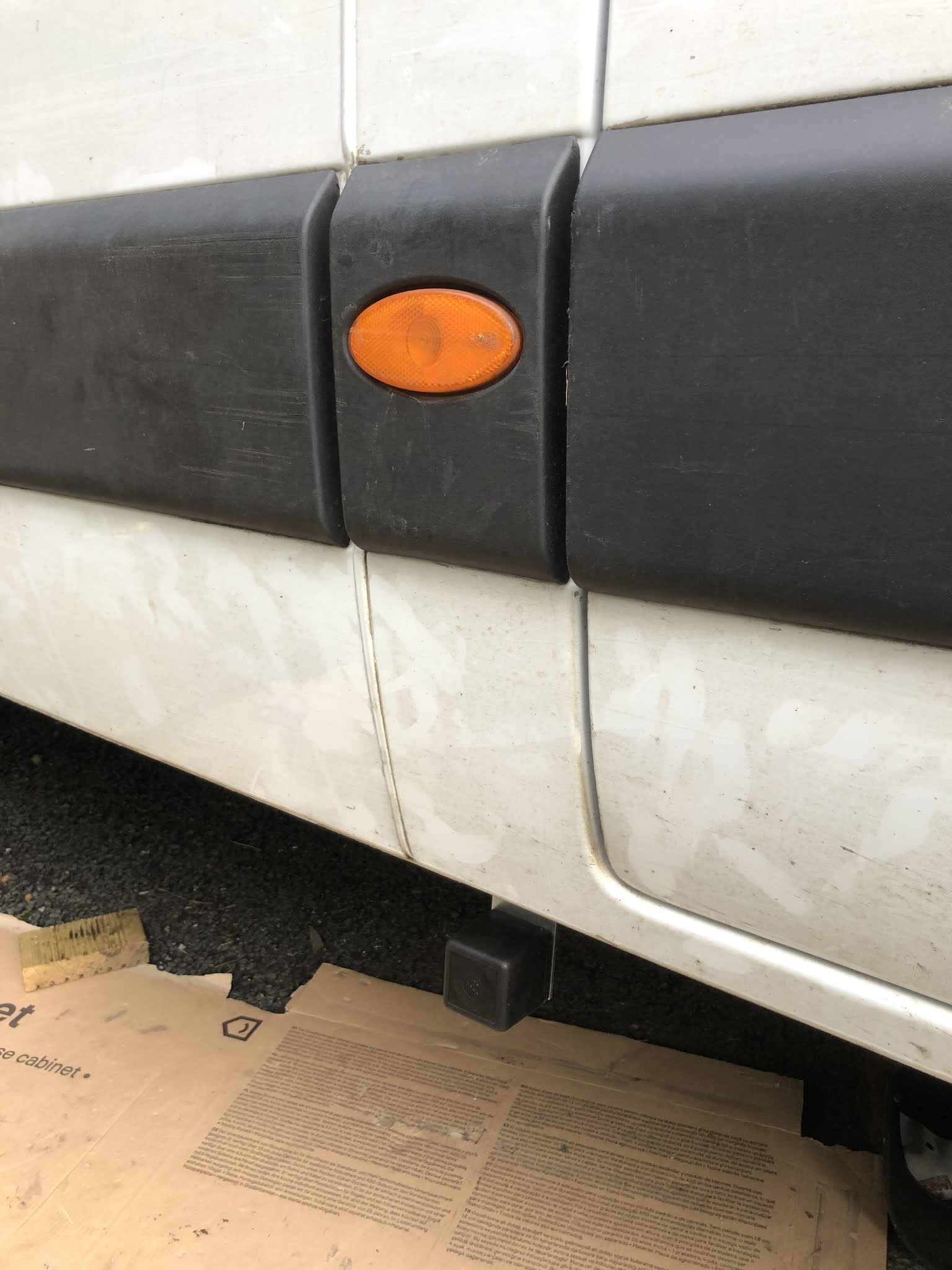

The gas system has arrived from LPGshop.co.uk! We've got a 30 litre gas tank that will fit under the van between the main chassis rail and the sill. We've opted for an underslung gas tank as it frees up more storage space within the van and is easy to top up, so running out of gas is less likely! We will also have a Livello LPG gauge mounted to our control panel so we can easily see the remaining level from inside the van.

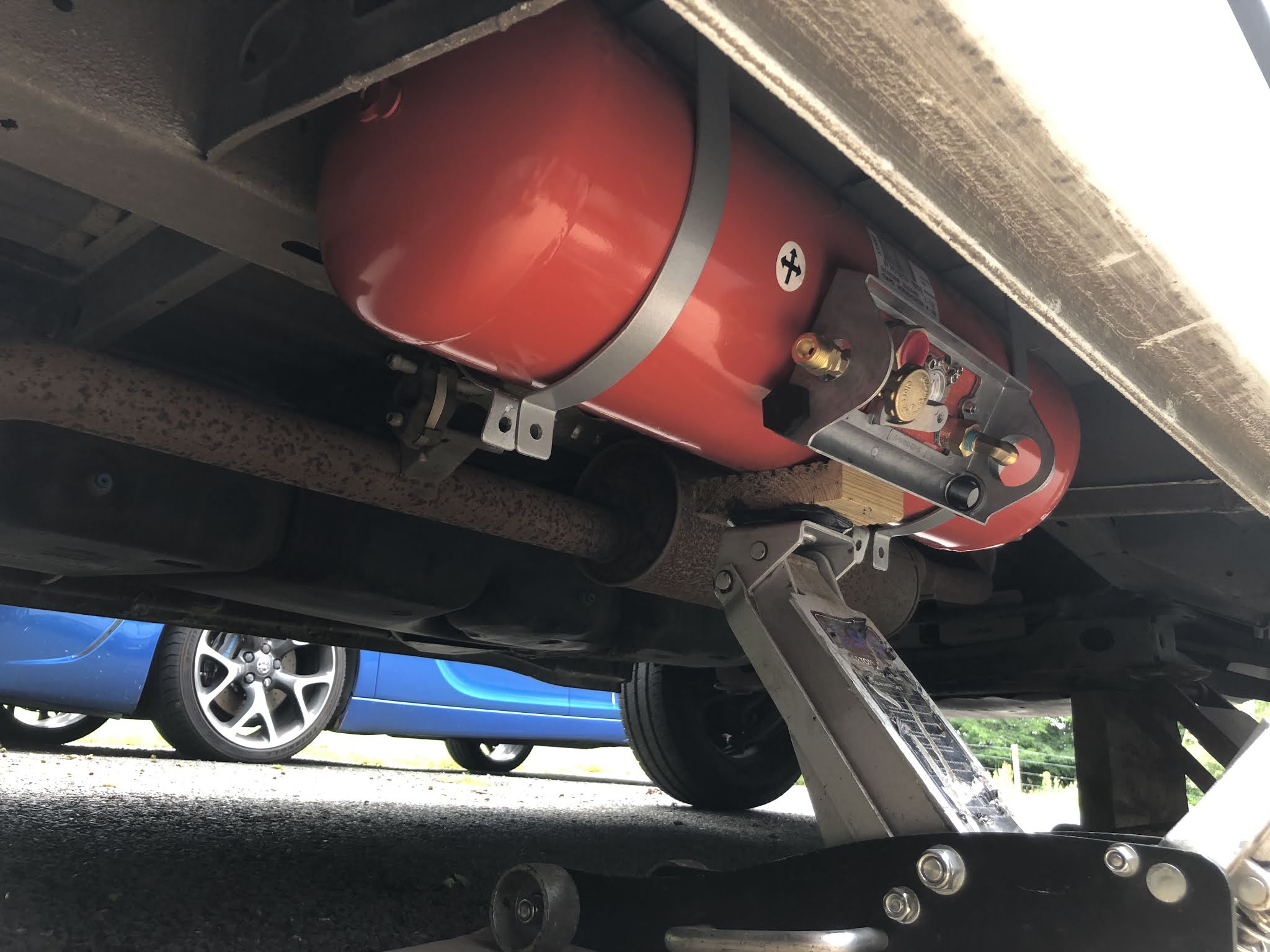

The tank is jacked up into place and holes for the mounting straps marked and drilled through the van floor. These bolts will still be accessible from inside the van by removing the drawer should we ever have to renew these fixing straps in the future.

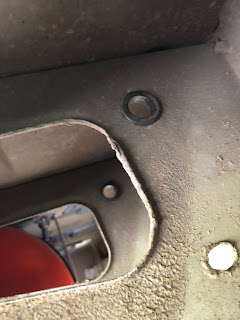

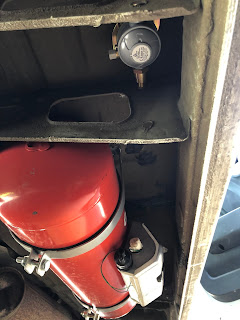

The 2 stage regulator is mounted to the underside of the van floor as high as possible with the test port easily accessible. Holes are drilled and grommets inserted and the pipes made up to connect the regulator to the tank. Pipe is made up to connect the fill point to the tank also. All gas pipework under the van is done in 8mm rubber coated copper pipe.
Inside the van the gas comes into a 2 way manifold mounted in our utility cupboard which will house the Truma Combi 4e heater, bin, cleaning stuff and tools etc.
The screw holes in the manifold wouldn't give it much support drilled into the chipboard cupboard so these holes were tapped and threaded to take an m5 bolt to securely clamp it to the cupboard.
